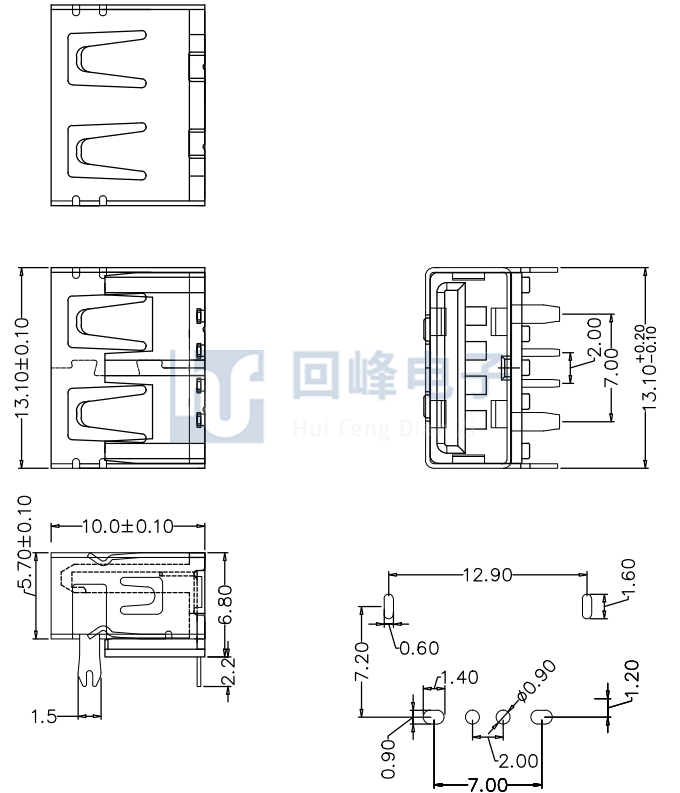

USB母座 AF2.0

MATERIAL:

外殼Shell: Copper Alloy 銅C2680 / 鐵SPCC/不繡鋼SUS

端子Contact: Copper Alloy 黃銅C2680 / 磷銅C5191

塑膠Housing: UL94V-0 PBT/LCP/PA White/Black

ELECTRICSPECIFICATION:

額定電壓Voltage Rating: 30V DC

額定電流Current Rating: 3.1A/Contact terminal

拔出力Unmating Force: 1.02 Kgf MIN

接觸阻抗Contact Resistance: 30 mΩ MAX.

絕緣阻抗Insulation Resistance: 1000 mΩ MIN.

插入力Mating Force: 3.57 Kgf MAX.

耐壓Dielectric Withstanding Voltage:  500V AC AT Sea Levol

端子保持力:Terminal Retenion Force: 1.2 Kgf MIN

環境溫度范圍Temperature Range: -30℃~80℃
